  1. Lines and Circles

    // LINES AND CIRCLES

    init<-0;
    ls <-0;
    PointCount <- 4;
    ap <- null;
    rp <- null;
    xp <- null;
    yp <- null;

    // Init display makes a voxel display wall using special display voxels.

    function Init_Display(Size)
    {
    local x,y;

    // Clear Zone

    for (x=0;x<32;x++)
    for (y=0;y<64;y++) UNF_PlaceVoxel3D(x+1,y,0,0);

    // Setup the screen

    for (x=0;x<Size;x++)
    for (y=0;y<Size;y++) UNF_PlaceVoxel3D(x+1,y,0,223);
    }

    // This function is called repeatedly for each step of the robot.

    function Voxel_Step()
    {
    local x,y,i,radius;
    local ax,ay, bx,by,cx,cy;

    // Startup code, build the environnment. Executes only once.

    if (init == 0)
    {
    init = 1;
    Init_Display(32); // Init the display wall.
    ap = [ 0.0 , 1.570796325 , 3.14159265, 4.712388975 ];
    rp = [ 15.5 , 15.5 , 15.5, 15.5 ];
    xp = array(16);
    yp = array(16);
    Image_New(0,32,32); // Create image canva to work with.
    }

    // Transformation

    for (i=0;i<PointCount;i++)
    {
    xp[i]=(sin(ap[i]+ls)*rp[i]).tointeger() + 15;
    yp[i]=(cos(ap[i]+ls)*rp[i]).tointeger() + 15;
    xp[i+PointCount]=(sin(ap[i]+ls+2.41)*rp[i]/2.0).tointeger() + 15;
    yp[i+PointCount]=(cos(ap[i]+ls+2.41)*rp[i]/2.0).tointeger() + 15;
    }

    // Clear image, Set radius.

    radius = 5.0;
    Image_Clear(0,7);

    // Circles

    for (i=0;i<10;i++)
    {
    ax = GetRnd(32); ay = GetRnd(32); bx = GetRnd(5);
    Image_Circle_Filled(0,ax,ay,2,4-GetRnd(1));
    }

    // White square

    Image_Line(0,xp[0],yp[0],xp[1],yp[1],0);
    Image_Line(0,xp[1],yp[1],xp[2],yp[2],0);
    Image_Line(0,xp[2],yp[2],xp[3],yp[3],0);
    Image_Line(0,xp[3],yp[3],xp[0],yp[0],0);

    // Green square

    Image_Line(0,xp[4],yp[4],xp[5],yp[5],9);
    Image_Line(0,xp[5],yp[5],xp[6],yp[6],9);
    Image_Line(0,xp[6],yp[6],xp[7],yp[7],9);
    Image_Line(0,xp[7],yp[7],xp[4],yp[4],9);

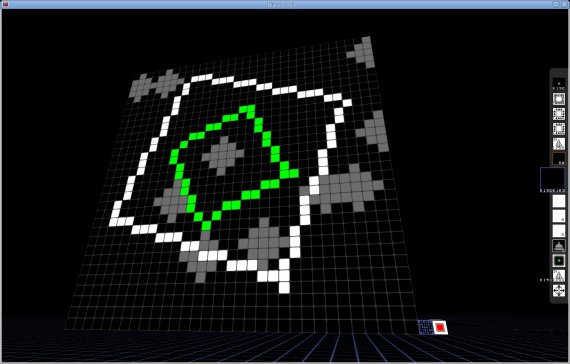

    // Render the canva to the voxel wall

    for (x=0;x<32;x++)
    for (y=0;y<32;y++)
    {
    i = Image_GetPixel(0,31-x,31-y);
    Voxel_SetInfo(1+x,0+y,0,1,i);
    }

    // Animate display : Change values for the next display step.

    ls+=0.30; if (ls > 6.2831853 ) ls -= 6.2831853;
    }
